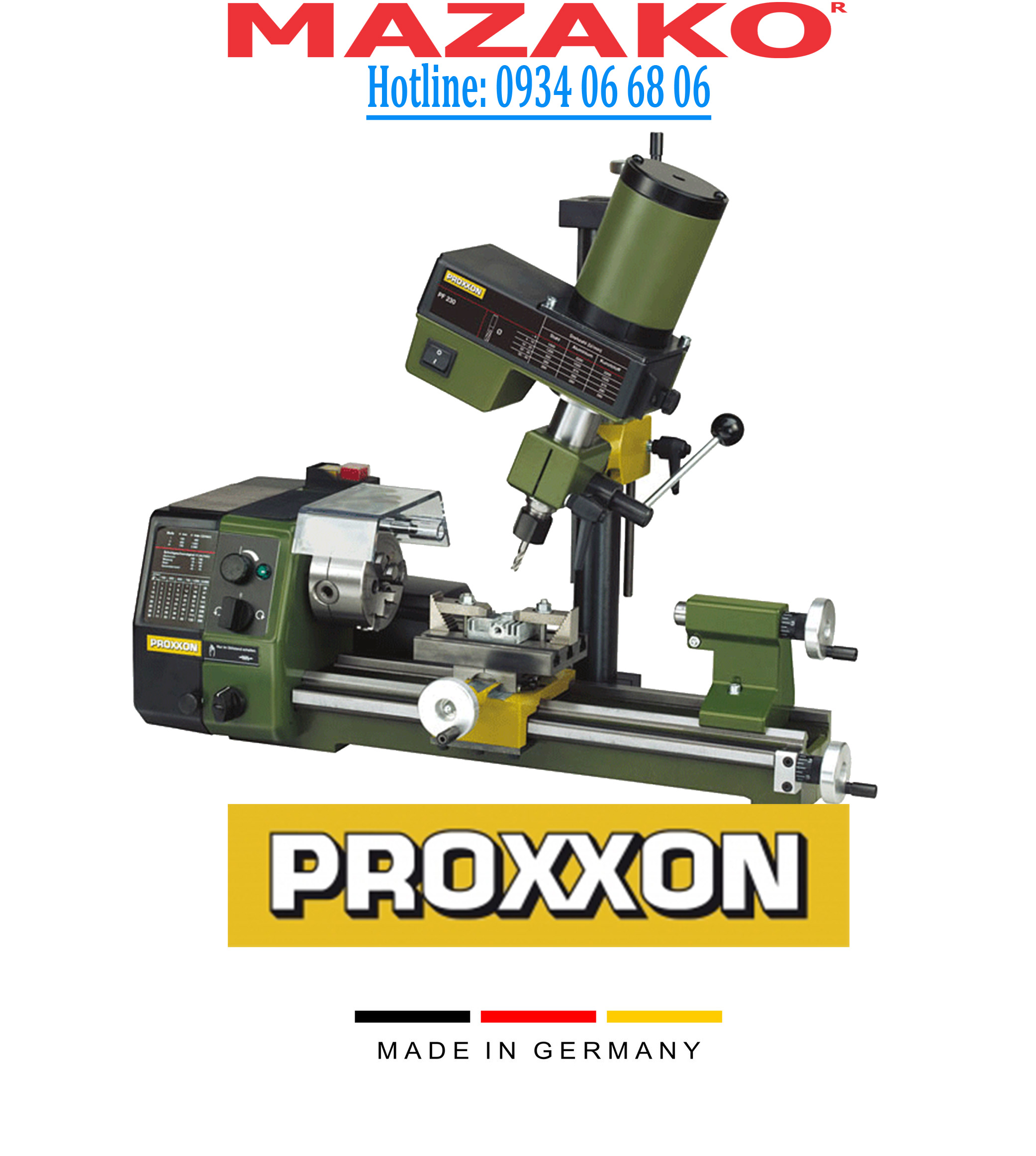

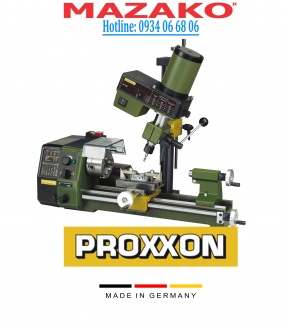

Proxxon PD 250/E & PF 250/BL Lathe and Milling System – High-Precision 2-in-1 Machining Solution

The Proxxon PD 250/E & PF 250/BL Lathe and Milling system is a sophisticated, high-performance combination designed for precision engineering. By integrating the PF 250/BL mill/drill head with the Proxxon PD 250/E lathe, users gain a versatile 2-in-1 machining center capable of turning, milling, and drilling with extreme accuracy.

For larger workpieces and heavy-duty applications, we recommend exploring the Proxxon PD 400 lathe or the high-capacity PD 400 and PF 250/BL combination system.

1. Technical Specifications: Proxxon PD 250/E Precision Lathe

This benchtop lathe is renowned for its rigidity and superior surface finish quality:

• Distance between centers: 250 mm.
• Swing over bed: 140 mm.
• Drive Motor: 230V / 50Hz, 140W quiet and durable motor.
• Spindle speeds: 300 – 3,000 rpm (Electronic speed control).
• Spindle accuracy: ±0.01 mm run-out (without chuck).
• Net weight: 12 kg (ideal for laboratories and precision workshops).
• Capabilities: Longitudinal and cross turning, taper turning, and thread cutting.

2. Technical Specifications: PF 250/BL Mill/Drill Head

When upgraded with the PF 250/BL head, the system becomes the PD 250/E and PF 250/BL combination, offering impressive milling performance:

• Motor Type: Brushless Motor (BLDC) providing high torque at low speeds and quiet operation.
• Table dimensions: 110 x 70 mm.
• T-Slot layout: 3 standard MICROMOT T-slots for secure workpiece clamping.
• Included Accessories: Triple-slit collets (sizes Ø 6, 8, and 10 mm).
• Manufacturing Origin: Made in Germany.

3. Industrial Applications of the PD 250/E & PF 250/BL System

This multipurpose machining system is widely utilized in high-tech industrial sectors:

• Precision machining for small-scale mechanical components.
• Prototype manufacturing, robotics development, and high-end DIY engineering.
• Technical laboratory equipment for universities and vocational training centers.
• Maintenance and repair of measuring instruments and horological devices (watchmaking).
