Manual Lathe

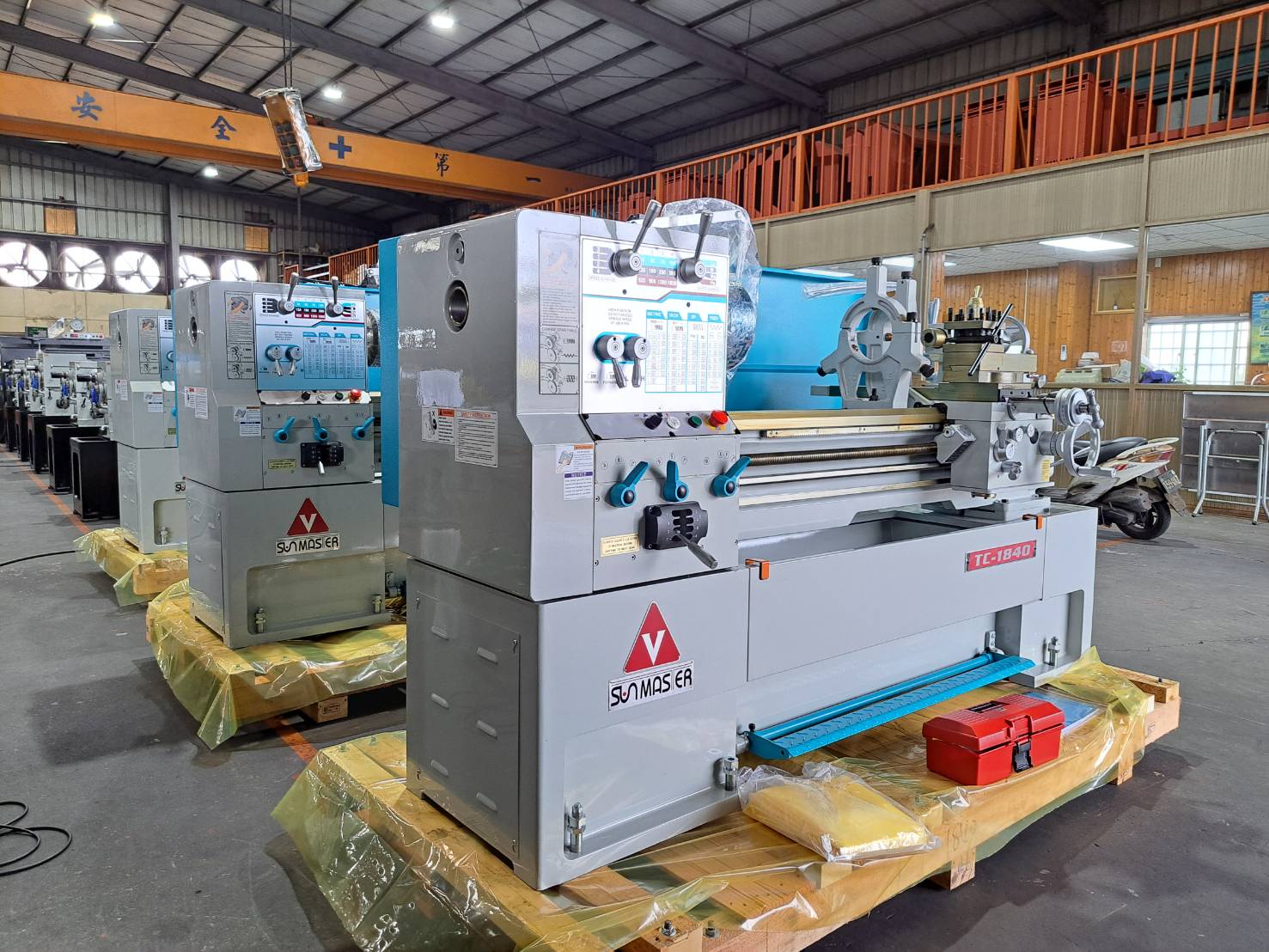

A conventional lathe machine, also known as an engine lathe machine or manual lathe machine, is a machine tool used in metalworking for various machining operations. It is a versatile and widely used tool that allows for the shaping, cutting, drilling, and turning of cylindrical workpieces.

Structure and Components
Conventional lathes typically consist of a horizontal bed, a headstock at one end, and a tailstock at the other. The workpiece is clamped between the headstock and tailstock, allowing it to rotate about its axis. The cutting tool, held in a tool post, is then brought into contact with the rotating workpiece to remove material and shape it.

Machining Capabilities

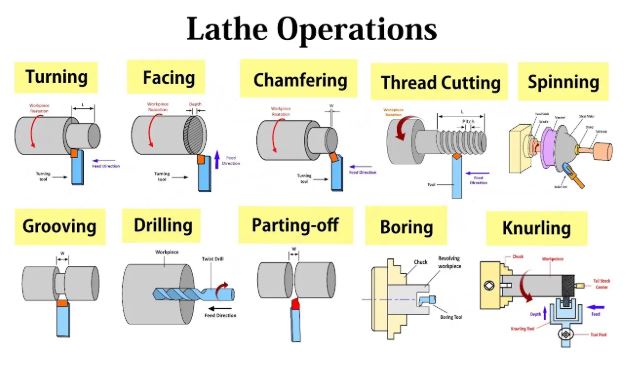

These lathe machines can handle various operations, including facing, turning, drilling, boring, threading, and taper turning.

Applications
They are commonly used for manufacturing components such as shafts, bushings, pulleys, and other cylindrical parts. The versatility and precision of conventional lathes make them suitable for both small-scale workshops and large industrial settings.



Turning Operations

Definition:
Turning is a primary lathe operation in which a cutting tool removes material from the external surface of a rotating workpiece to create a cylindrical shape. It is one of the most common and fundamental operations performed on a lathe machine.

Purpose:

• To reduce the diameter of a workpiece to a specified size

• To produce straight, tapered, or contoured cylindrical surfaces

• To prepare surfaces for subsequent operations such as threading or finishing

Techniques:

• Straight Turning: Producing a uniform diameter along the length of the workpiece

• Step Turning: Creating shoulders or different diameter sections on a single workpiece

• Taper Turning: Producing a conical shape by gradually reducing the diameter

• Contour Turning: Forming complex curved profiles on a cylindrical surface

Applications:
Turning is widely used to manufacture shafts, pins, bushings, rollers, and various cylindrical mechanical components in industries such as automotive, aerospace, and general machinery.
