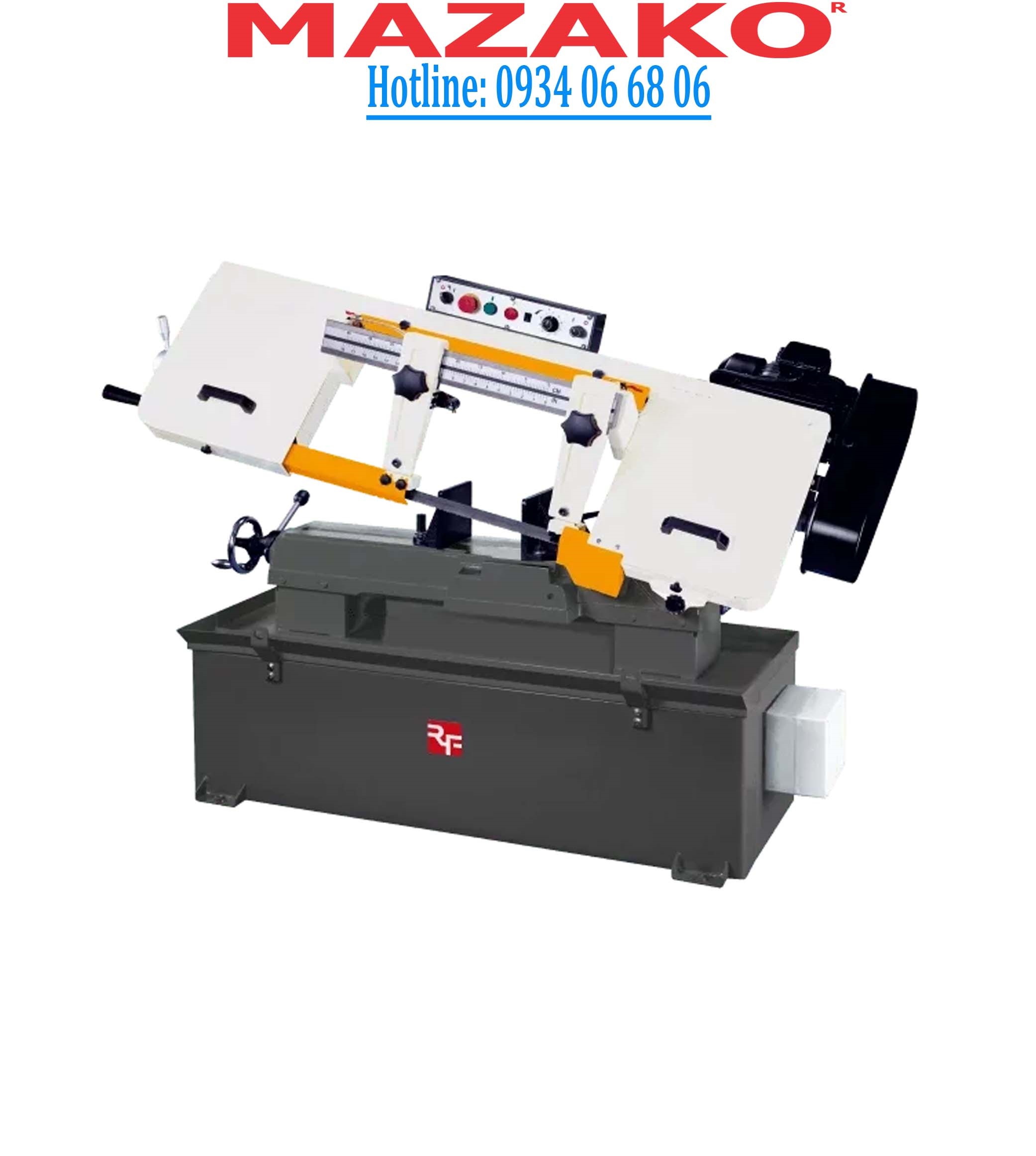

Metal Band Saw RF-1018S (Pulley Drive)

Introduction to Metal Band Saw Technology

Metal Band Saw technology is a fundamental pillar of modern industrial metalworking, providing a high-precision and material-efficient method for cutting structural steels, alloys, and solid stocks. Unlike abrasive saws that generate excessive heat and dust, a band saw utilizes a continuous, high-tension blade that offers narrow kerf cuts and superior surface finishes. Advanced models like the RF-1018S incorporate heavy-duty cast components and hydraulic feed controls to ensure absolute stability and repeatable accuracy in professional workshop environments.

Features and Robust Mechanical Structure

The RF-1018S is built upon a high-integrity Cast Structure and Heavy Duty Steel Base designed to eliminate vibration during high-capacity cutting. It features a One-piece Saw Bow equipped with a Centralized Control Panel for ergonomic operation. The machine utilizes a Tru-lock Vise System providing absolute clamping force, alongside a Quick-release Vise for fast job transitions. Precision is maintained through an Adjustable Blade Guide System and heavy-duty blade wheel ball bearings. Operators can achieve consistent results using the Adjustable Hydraulic Down Feed and conveniently manage blade tension via the dedicated hand wheel. This model also supports Miter Cutting Capability and offers Easy Speed Changes to suit various material requirements.

Technical Specifications and Capacity

The RF-1018S offers professional-grade cutting capacities, handling Round cutting up to 254 mm (10 inch) at 0 degrees and 150 mm (6 inch) at 45 degrees. For Rectangular cutting, it supports up to 127 x 468 mm (5 x 18 inch) at 0 degrees and 175 x 239 mm at 45 degrees. Powered by a robust 2 HP Main Motor, the machine provides flexible speeds. At 60Hz, speeds range from 35-60-88-115 m/min (114-196-288-377 ft/min), while at 50Hz, it operates at 29-50-73-96 m/min (95-164-239-314 ft/min).

The machine utilizes a high-performance Saw Blade measuring 27 x 0.9 x 3090 mm (1.06 x 0.035 x 121.66 inch). The physical footprint of the unit is 1720 x 620 x 1055 mm (67.7 x 24.4 x 41.5 inch). For logistics and shipping, the packing dimensions are 1790 x 670 x 1155 mm, with a net weight of 320 kgs and a Gross Weight of 350 kgs.

Related Metal Band Saw Models

RF-1018SV Variable Speed Model
RF-912G Gear Drive Model
RF-912B Pulley Drive Model
RF-1018S Standard Industrial Model
RF-1018SRV Mechanical Variable Speed
