RF-1018SRV Metal Band Saw | Mechanical Variable Speed & Swivel Base | MAZAKO

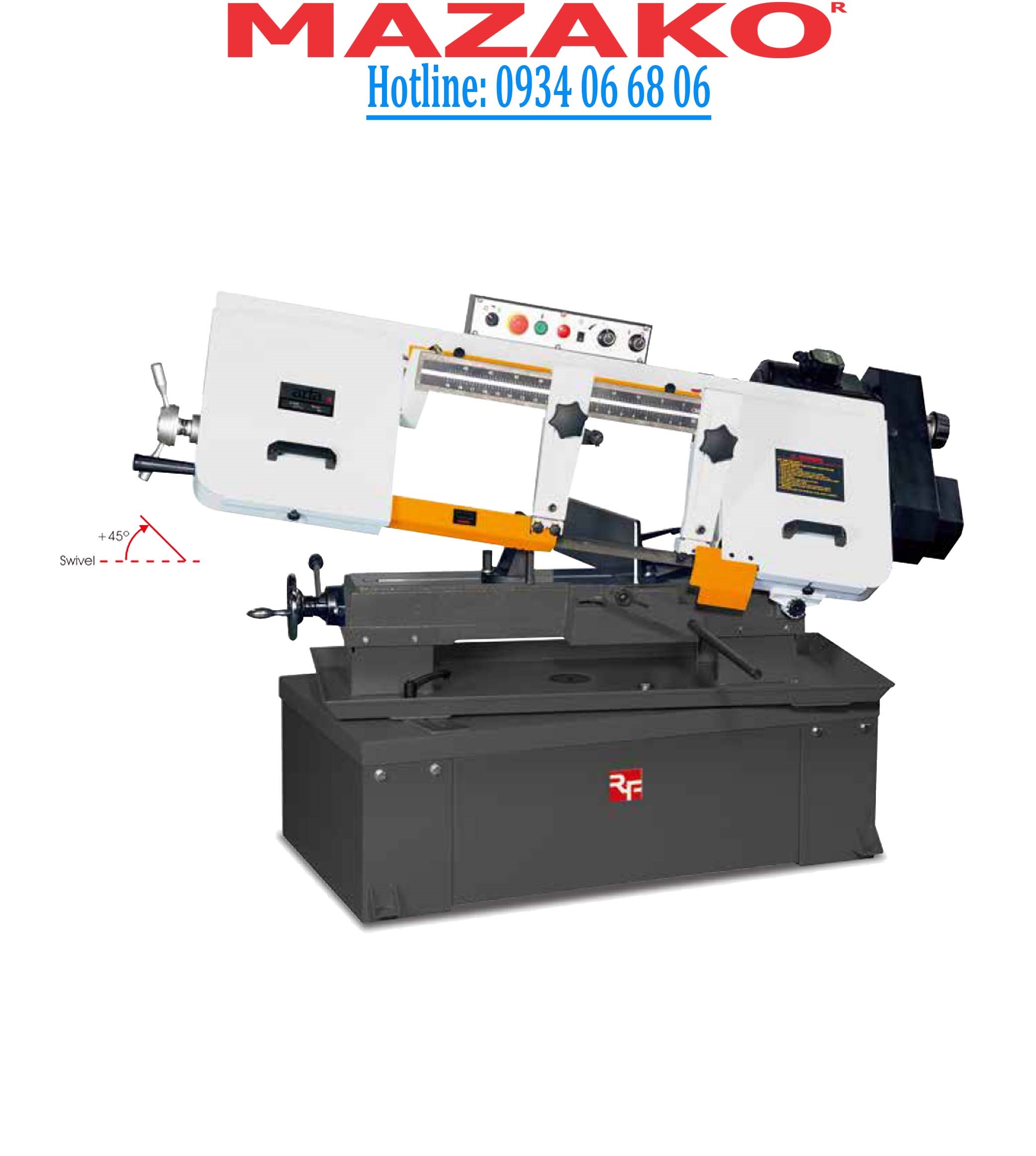

Metal Band Saw RF-1018SRV (Mechanical Variable Speed with Swivel Base)

Innovation in Metal Band Saw Technology

Metal band saw technology has evolved into a cornerstone of precision manufacturing, offering a high-efficiency alternative to traditional abrasive cutting. Unlike standard saws that produce high heat and excessive waste, the continuous loop blade of a modern band saw provides narrow kerf cuts and superior surface finishes. The RF-1018SRV represents the pinnacle of this evolution, integrating mechanical variable speed control with a swivel base design to provide unmatched versatility for industrial metal fabrication.

Professional Features and Structural Integrity

The RF-1018SRV is engineered for high-demand environments, utilizing a heavy-duty Cast Structure and Heavy Duty Steel Base to eliminate vibration and ensure mechanical stability. A key highlight is the One Way Swivel on Base, which allows for effortless miter adjustments without moving the workpiece. The machine features a One-piece Saw Bow equipped with a Centralized Control Panel for ergonomic operation.

For precision clamping, the Tru-lock Vise System provides absolute clamping force, while the Quick-release Vise facilitates rapid job changes. Speed adjustments are seamless thanks to the Mechanical Variable Speed system, allowing operators to fine-tune the cutting rate without stopping the motor. Additional structural benefits include a Blade Tension Hand Wheel, an Adjustable Hydraulic Down Feed, and a heavy-duty Adjustable Blade Guide System supported by premium blade wheel ball bearings.

Comprehensive Technical Specifications

This model boasts a formidable cutting capacity, handling Round cutting up to 254 mm (10 inch) at 0 degrees and 150 mm (6 inch) at 45 degrees. Its Rectangular cutting capabilities reach 127 x 468 mm (5 x 18 inch) at 0 degrees and 175 x 239 mm at 45 degrees. Power is provided by a high-torque 2 HP Main Motor. At a 60Hz frequency, the mechanical variable speed ranges from 22 to 95 m/min (73~312 ft/min), while at 50Hz, it provides 18 to 78 m/min (59~256 ft/min).

The unit utilizes a precision Saw Blade measuring 27 x 0.9 x 3090 mm. The machine's physical dimensions are 1720 x 620 x 1055 mm, making it a robust addition to any shop floor. For logistics, the packing dimensions are 1790 x 670 x 1155 mm, with a net weight of 320 kgs and a Gross Weight of 350 kgs.

Explore Our Metal Band Saw Range

RF-1018SV Variable Speed Model
RF-912G Gear Drive Model
RF-912B Pulley Drive Model
RF-1018S Industrial Standard
RF-1018SRV Mechanical Variable Speed
